Best Hikvision DS-KAS541 Face Recognition Touch Free Single Door Access Control Solution Kit in Sri Lanka 2 Years Warranty..

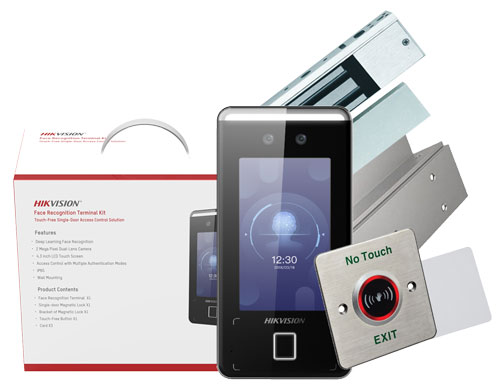

The DS-KAS541 face recognition terminal kit provides a touch-free single-door access control solution, contains DS-K1T341CMF face recognition terminal, DS-K4H258S single-door magnetic lock, DS-K4H258-LZ single-door magnetic lock bracket, DS-K7P03 touch free button, and FM11RF08-M1 cards.

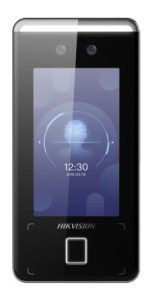

DS-K1T341CMF Face Recognition Terminal

• Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
• Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
• 4.3-inch touch screen with 720p resolution
• Face anti-spoofing
• Face recognition distance: 0.3 m to 1.5 m
• Deep learning algorithm
• 1500 face capacity, 1,500 card capacity, 1,500 fingerprint capacity (should be supported by device model) and 150,000 event capacity
• Face recognition duration ＜ 0.2 s/User; face recognition accuracy rate ≥ 99%
• Capture linkage and captured pictures storage
• Transmits card and user data from or to the client software via TCP/IP protocol and saves the data on the client software
• Imports pictures from the USB flash drive to the device or export pictures, events, from the device to the USB flash drive
• Stand-alone operation
• Manage, search and set device data after logging in the device locally
• Connects to one external card reader via RS-485 protocol
• Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
• Connects to external access controller or Wiegand card reader via Wiegand protocol
• Two-way audio with indoor station and master station
• Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
  Supports multiple languages: English, Spanish, Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), and Korean.
• Configuration via the web client
• Remotely opens door and starts live view via Hik-Connect
• Supports ISAPI and ISUP 5.0 protocols

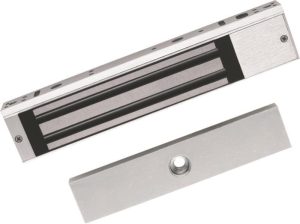

DS-K4H258S Magnetic Lock

• The magnetic lock supports static linear thrust of 280 kg (600 Lbs)
• Default voltage is 12 VDC
• It is equipped with internal voltage dependent resistor (MOV)
• It is applied to wooden door, glass door, metal door and fireproof door
• LED indicator displays the status of door lock
• Anti-residual magnetism design
• Abrasion-proof materials
• The shell is made up of aldural and is hard anodizing electroplated
• No mechanical failure, and the magnetic lock works by electromagnetism force

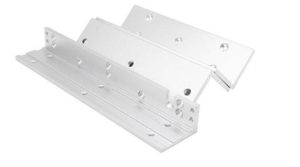

DS-K4H258-LZ Accessary of Magnetic Lock

• Adopts aldural material
• Hard anodizing electroplating operated
• L-bracket is used for fixing the lock body;
• Z-bracket is used for fixing the armature plate
• Suitable for wooden door, and metal door

DS-K7P03 Exit Button

• Dimension (L × W × H): 86 mm × 86 mm × 25.7 mm (3.39″ × 3.39″ × 1.01″)
• Input Voltage: 12 VDC
• Working Current: 40 mA (standby), 70 mA (working)
• Current Rating: 1 A@30 VDC
• Output Contact: NO/NC/COM contact
• Panel: Stainless steel
• Aging Test: Already passed 1 million times aging test
• Suitable Doors: All kinds of narrow doorframes
• Working Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
• Working Humidity: 0 to 95% (relative humidity)
• Detection Range (Adjustable): 40 mm to 120 mm (1.57 to 4.72″)
• Time Delay: 1 to 25 s (adjustable)
• LED Indicator Status: Green/red LED indicates working/standby
• Product Weight: 0.2 kg (0.44 lb)

FM11RF08-M1 Card

• M1 contactless smart card, Frequency: 13.56MHz
